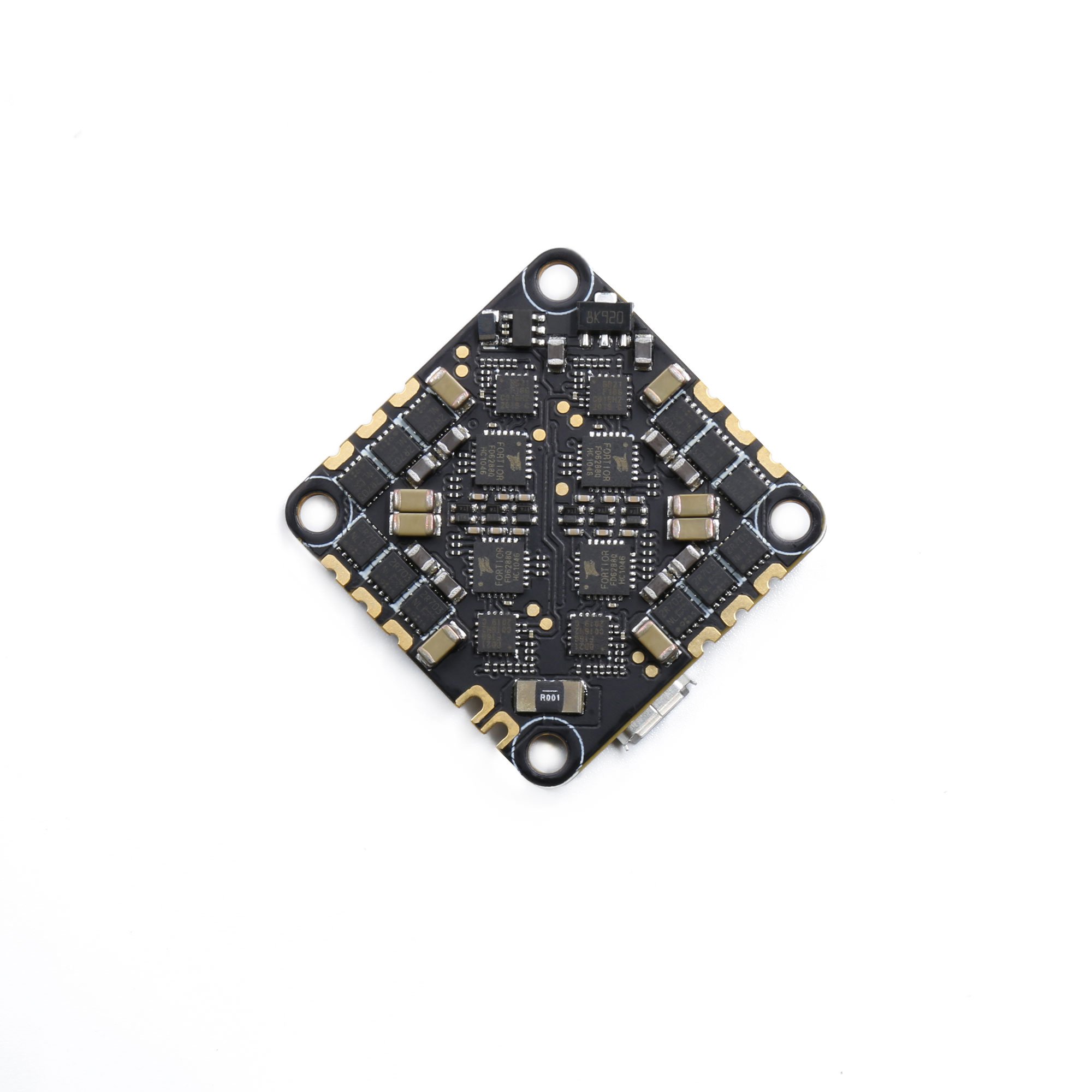

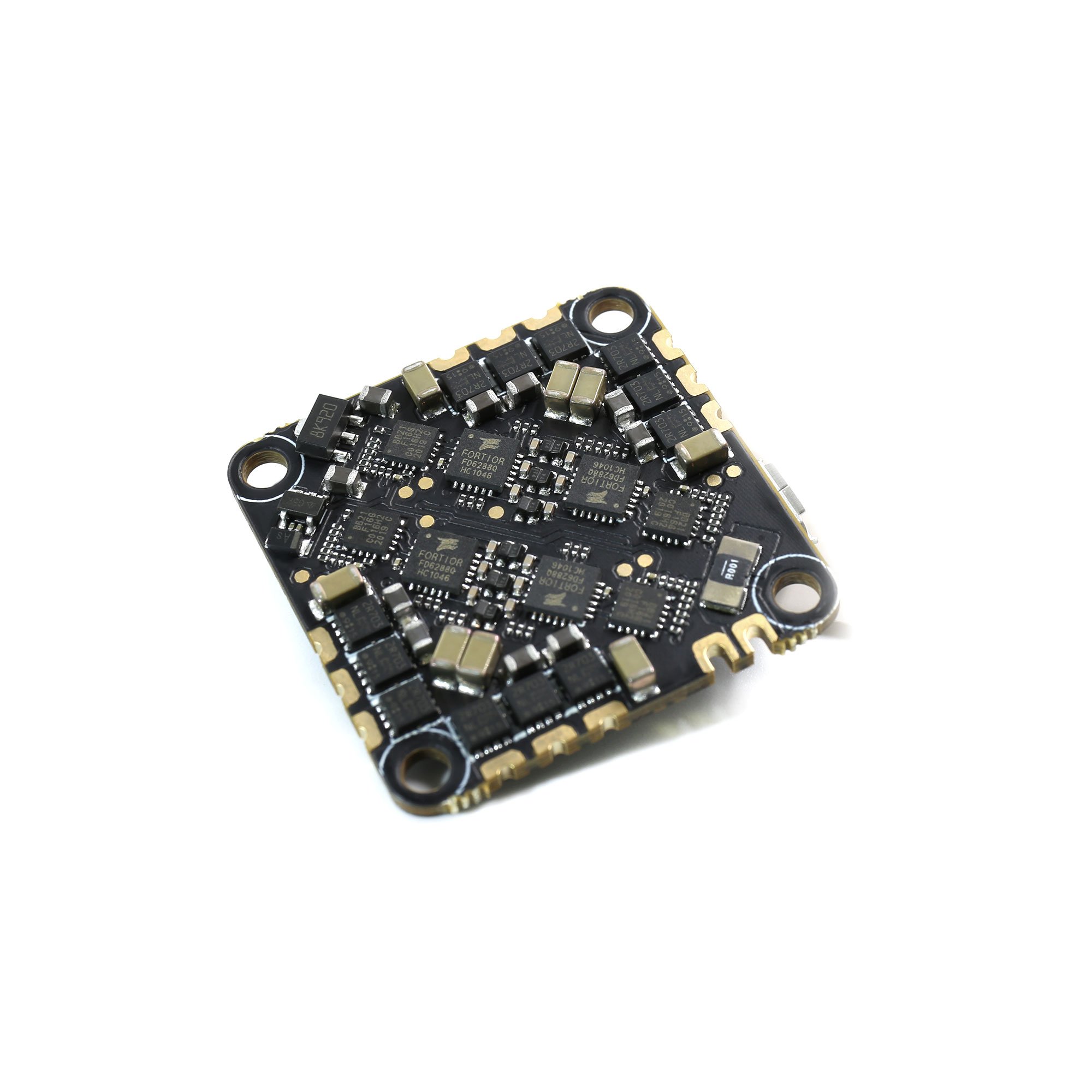

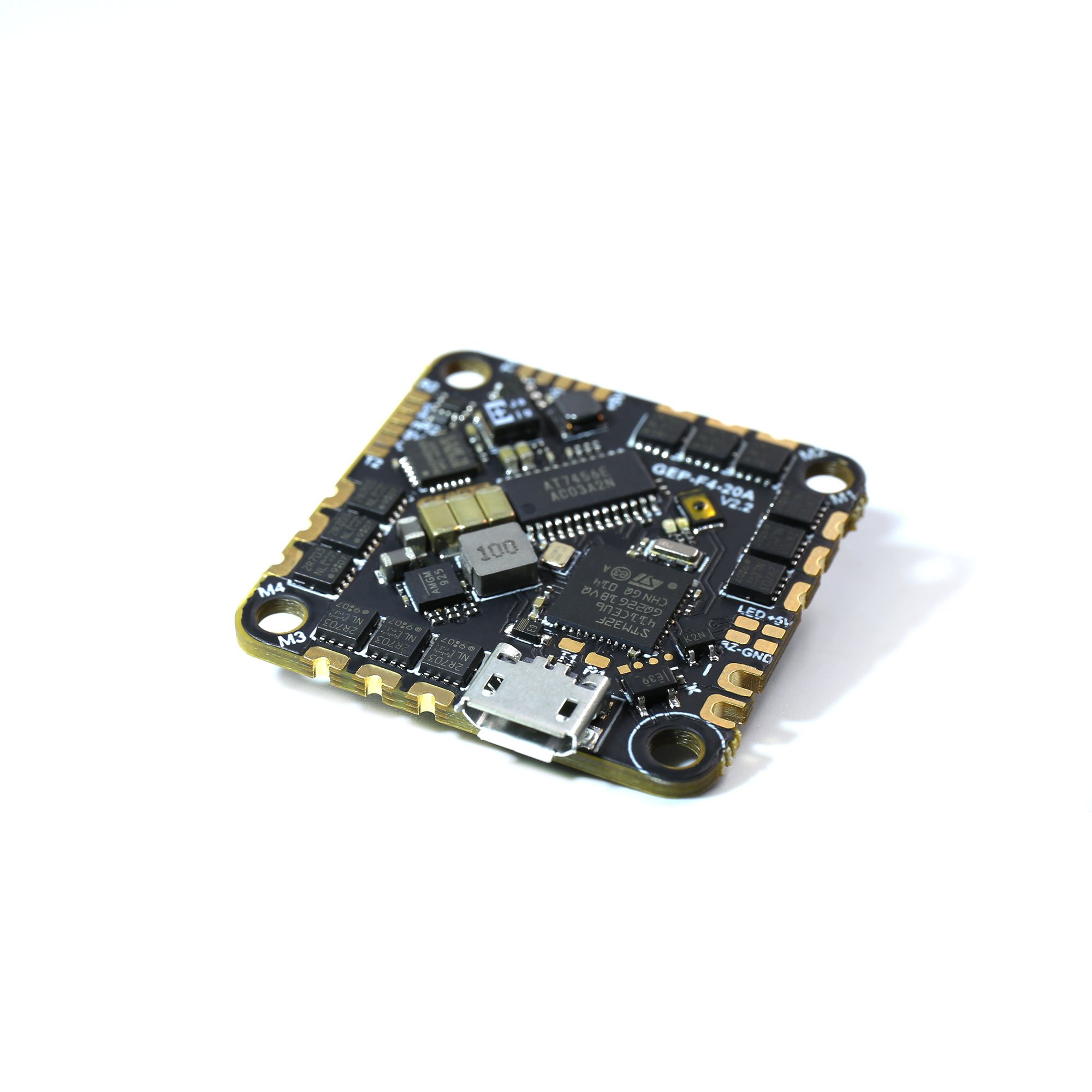

GEPRC GEP-20A-F4 AIO
¥ 9,950 税込
商品コード：
関連カテゴリ
2~4セル対応のTinyサイズのオールインワンFC！
Toothpickに最適な20AのESC！
15XXサイズのモーターまで対応します
Specifications:
Model Name:GEP-20A-F4
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
FC Firmware target:MATEKF411
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
Current Monitoring : Support
Betaflight OSD : Support
External Buzzer : Support
LED : Support
USB Port: MicroUSB
BEC Output: 5V@1A
Integrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 20A
Peak current: 30A
Input voltage:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
Size: 32x32mm board,26.5mm mounting holes (M2)
Installing Hole: 26.5×26.5mm, M2
Receiver Support:
Include：
– 1 x GEP-20A-F4
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
