BDI Digital Adapter V2 - Analog Adapter for DJI FPV Goggles

¥ 12,500 税込

商品コード：

数量

DJI DigitalゴーグルにFATSHARK用のモジュールを装着できるアダプター！

2セルから6セル電源が使用でき、外部入力により5.8Ghz ダイバシティビデオレシーバーでアナログ用電波を利用できます！



Specification



Dimensions

158 x 74 x 40 mm (6.25 x 3 x 1.6 inches)



Weight

34g



Ports

5.5mm x 2.1mm DC In 7.4v-26v (2s-6s)

4 pole 3.5mm video/audio out

9 pin RF module receiver header



Button

Short delay tactile power button for analog module



Cables

5.5mm x 2.1mm male to dual 5.5mm x 2.1mm female DC jack splitter

4 pole gold plated 3.5mm male to 3.5mm male video cable

Dual 4 Pole 3.5mm male to 3 Pole 3.5mm female splitter video/audio cable



Accessories

Screwless strain relief clip and cable management clips



Maximum Input Voltage

28 Volts DC



Minimum Input Voltage

7.4 Volts DC



Nominal Output Voltage

5 Volts DC



Maximum Module Supply Current

1.0 Amp



Rated Continuous Power

5 Watts



Material/Colour

Matte black, Injection-molded, Acrylonitrile butadiene styrene (ABS)

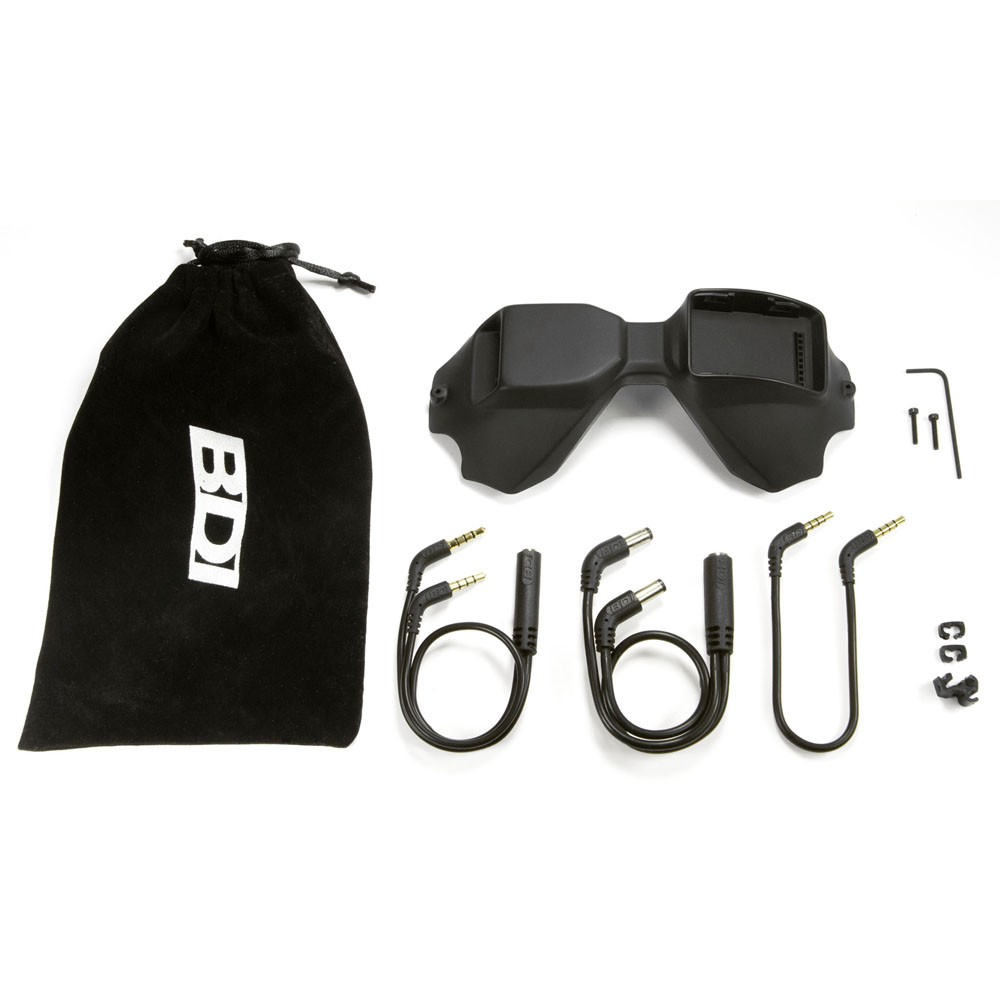

Includes

1 x Digidapter V2 Faceplate

1 x Analog video cable

1 x Analog video/audio splitter for audio out

1 x Dual DC/DC male to single DC female split cable

1 x Allen key

2 x 12mm cap head bolts

1 x Cable strain relief clip

2 x Cable clips
