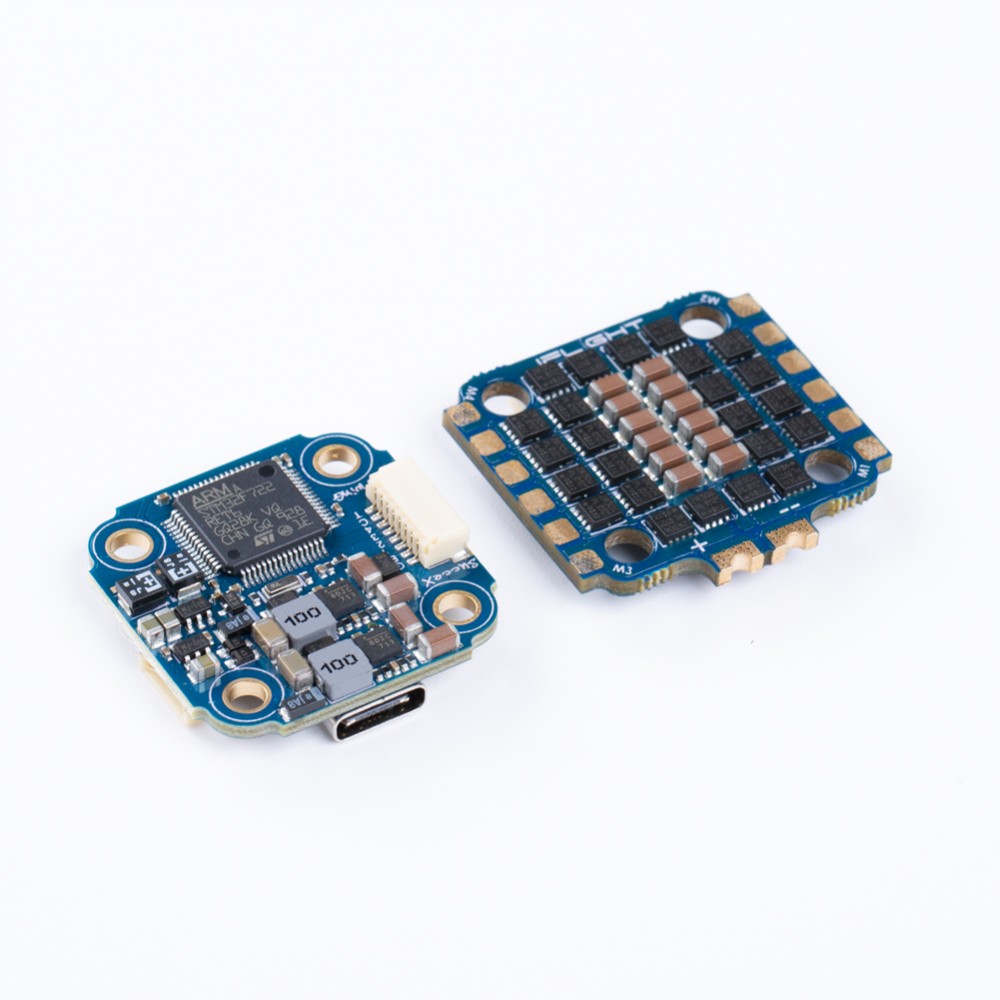

SucceX-D Mini F7 TwinG Stack (Mini F7+40A ESC) ※DJI Air Unit用
¥ 10,800 税込
商品コード：
関連カテゴリ
20mmx20mmのDJI Air Unit用ポートが付属したF7FC+40A ESC！
DJIのユニットとはコネクターのみで接続できます
※DJIのユニット以外でも使用可能です
ESCは40Aの大容量！BL32で6セルまで対応！

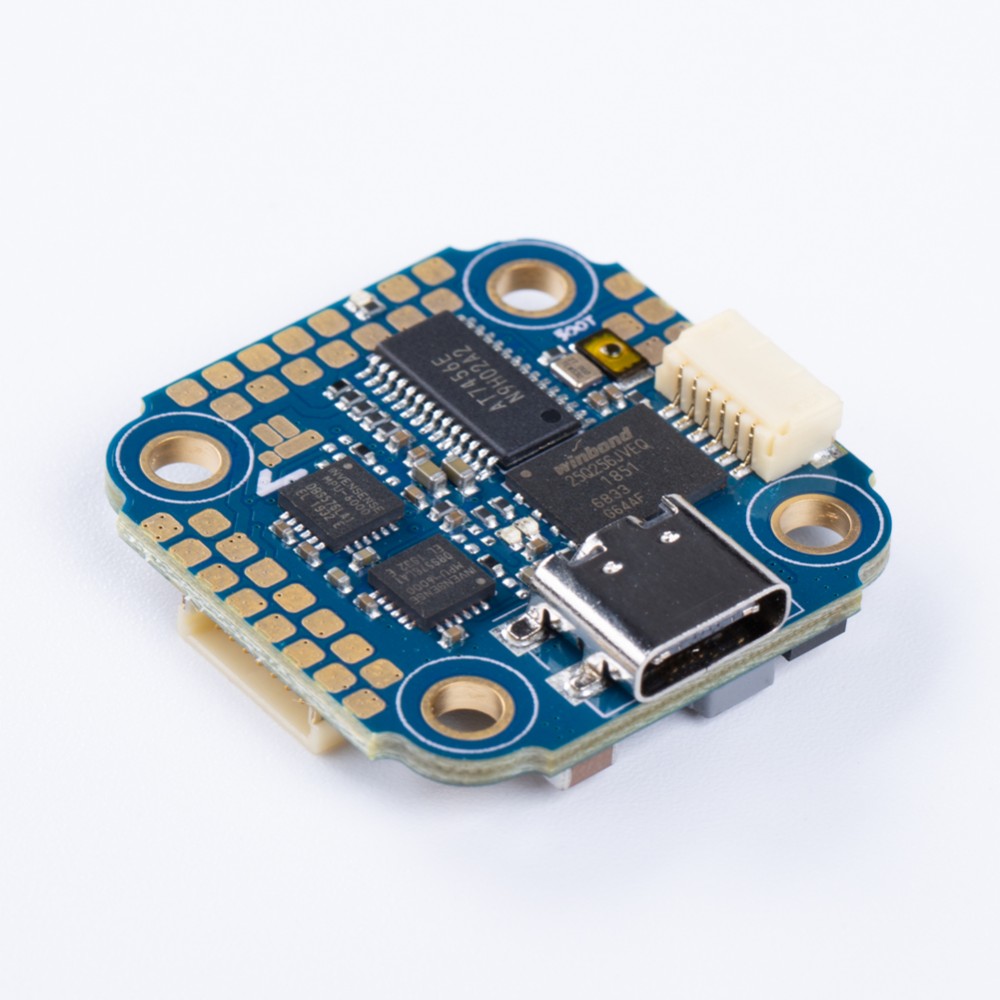

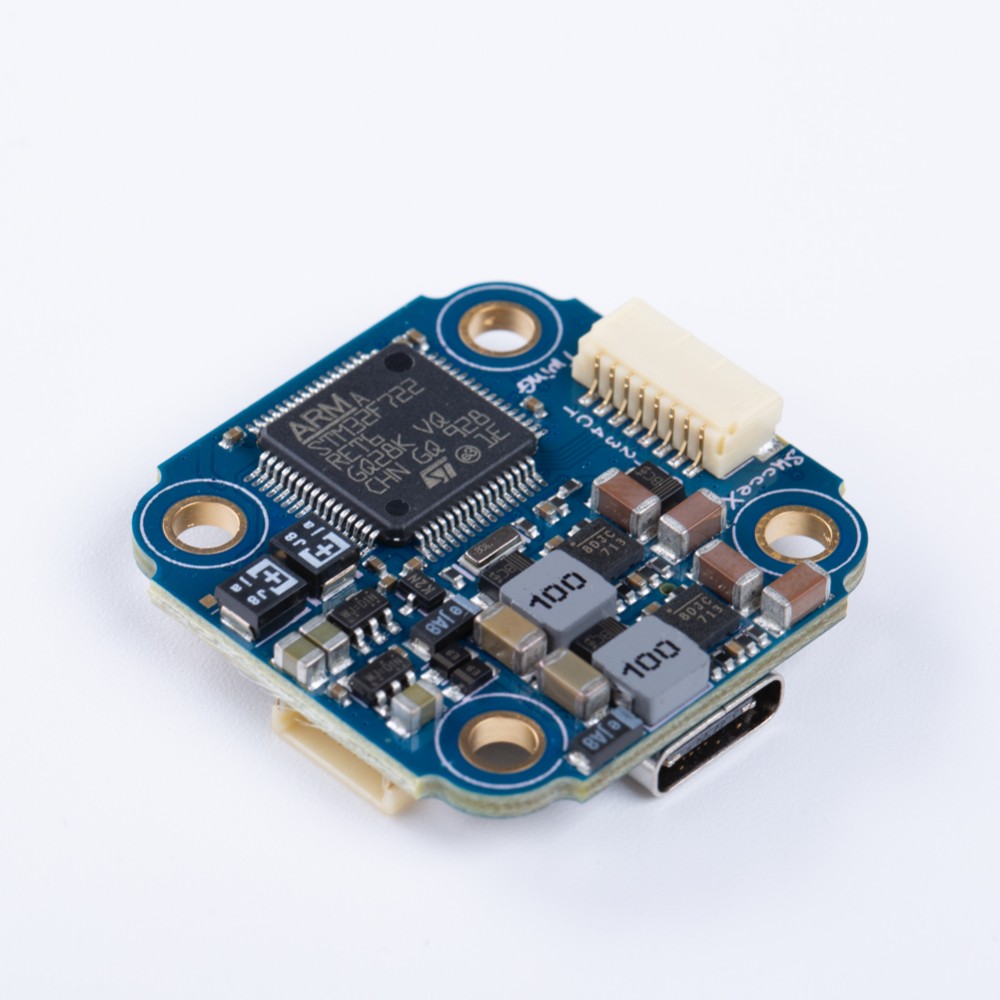

FC // SucceX-D Mini F7
MCU: 216MHz STM32F722
Gyro：2x ICM20689
Blackbox：32MB
Betaflight OSD: YES
BEC: 5V 2.5A / 9V 2.5A
Current sensor scale: 100
Inverter for SBUS input (UART2-RX)
Smartaudio & Tramp VTX protocol supported
Beeper pad : Yes
RSSI input pad: No
UARTs：5
Motor outputs: 4
8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
BLHeli32 Telemetry：RX5
Input voltage：recommended 2-6S, MAX 6S
Firmware: IFLIGHT_F722_TWING
Mounting pattern: 20*20mm φ3
Dimensions: 29*29mm
USB type-C

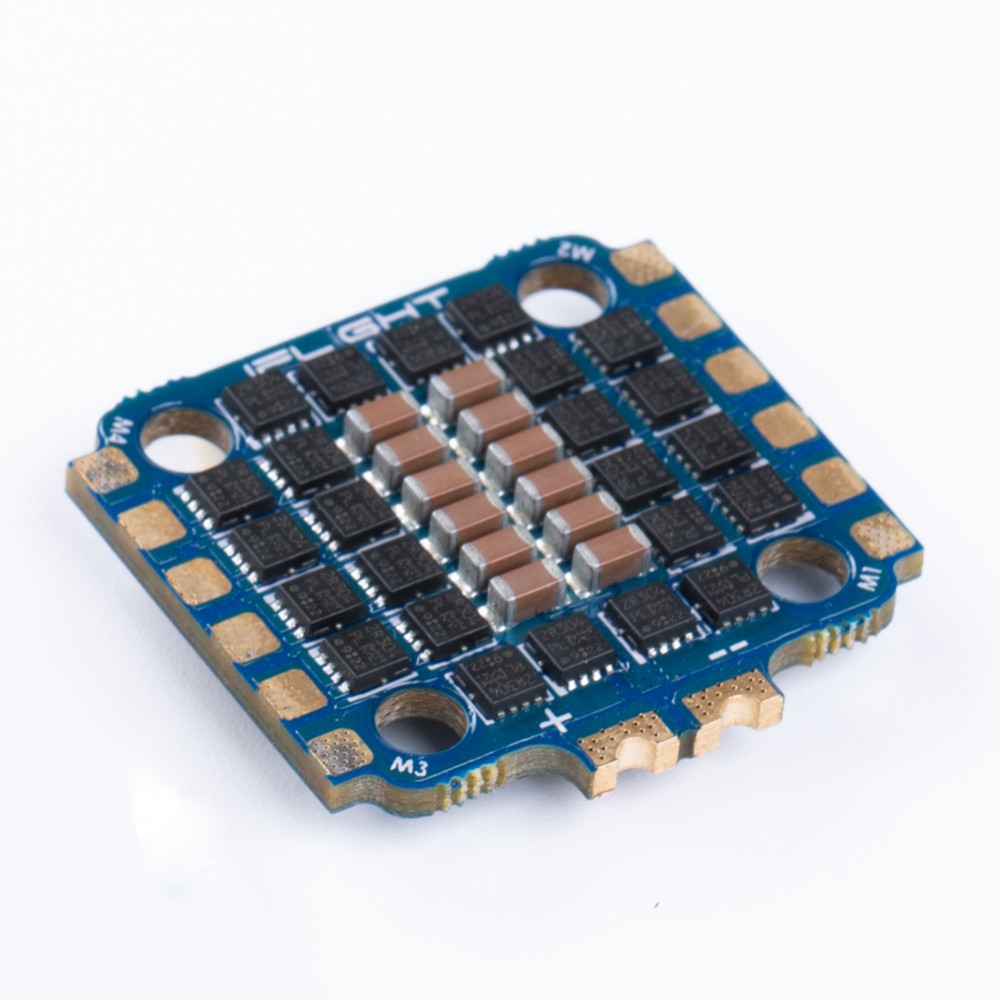

ESC // SucceX 40A
MCU: STM32F051K66
Up tp 48kHz PWM frequency
Capacity: 470uF/50V
Current Sensor: Yes
Input: recommended 2-6S
Constant: 40A / Burst: 50A
BlHeli32 telemetry: Yes
Supports up to Dshot1200, Proshot, Oneshot, Multishot
Target: iFlight-BL32-4IN1
Weight: 7.2g
Mounting pattern: 20*20mm φ3mm with Grommets φ2mm
Dimensions: 31*31mm (including the power pads)
Package included:
1pc x SucceX-D F7 Mini TwinG Flight Controller
1pc x SucceX Mini 40A 4in1
