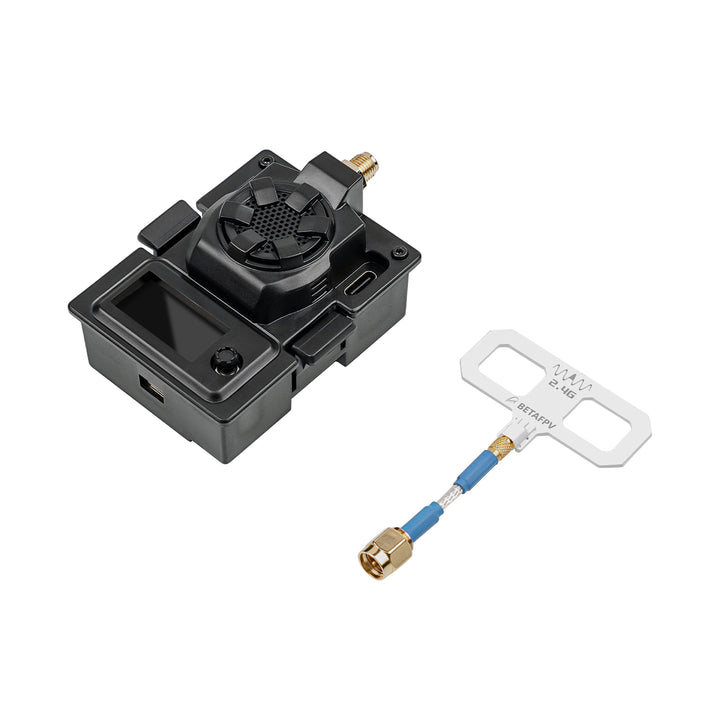

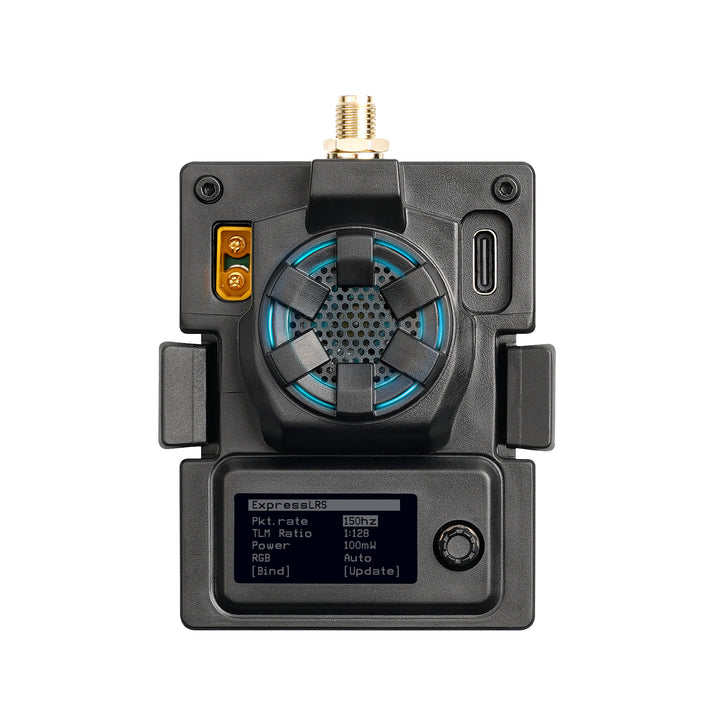

BETA FPV ELRS Micro 1W ロングレンジモジュール

¥ 7,100 税込

商品コード：

数量

1Wの高出力ELRS 2.4G用ロングレンジモジュール！



SPECIFICATION



PACKET REFRESH RATE: 25HZ/50HZ/100HZ/200HZ (915MHZ/868MHZ), 50HZ/150HZ/250HZ/500HZ (2.4GHZ)



RF OUTPUT POWER: 25MW/50MW/100MW/250MW/500MW (2.4GHZ), 100MW/250MW/500MW (915MHZ/868MHZ)



FREQUENCY BANDS (MICRO RF MODULE 2.4G VERSION): 2.4GHZ ISM



FREQUENCY BANDS (MICRO RF MODULE 915MHZ/868MHZ VERSION): 915MHZ FCC/868MHZ EU



INPUT VOLTAGE: 5V~12V



XT30 PORT: 5V~12V, RECOMMEND 2S(8.4V) BATTERY, DO NOT SUPPORT 3S(12.6V) OR ABOVE



USB PORT: TYPE-C



DIAGRAM







BETAFPV MICRO RF TX MODULE IS COMPATIBLE WITH RADIO TRANSMITTER WHICH HAS THE MICRO MODULE BAY (AKA JR/SLIM MODULE BAY, E.G. FRSKY TARANIS X9D、TBS MAMBO).
