GEP-CL35 Frame Kit

¥ 7,450 税込

商品コード:

数量

3.5インチでGoPROを搭載できるサイズのシネフープフレーム!

最新の丈夫な軽量フレームと防振カメラマウントで綺麗な映像を撮ることができます!

ダクト型のフレームにありがちなプロペラ音を低減するノイズリダクションデザインを採用!



Specification:



Model: GEP-CL35

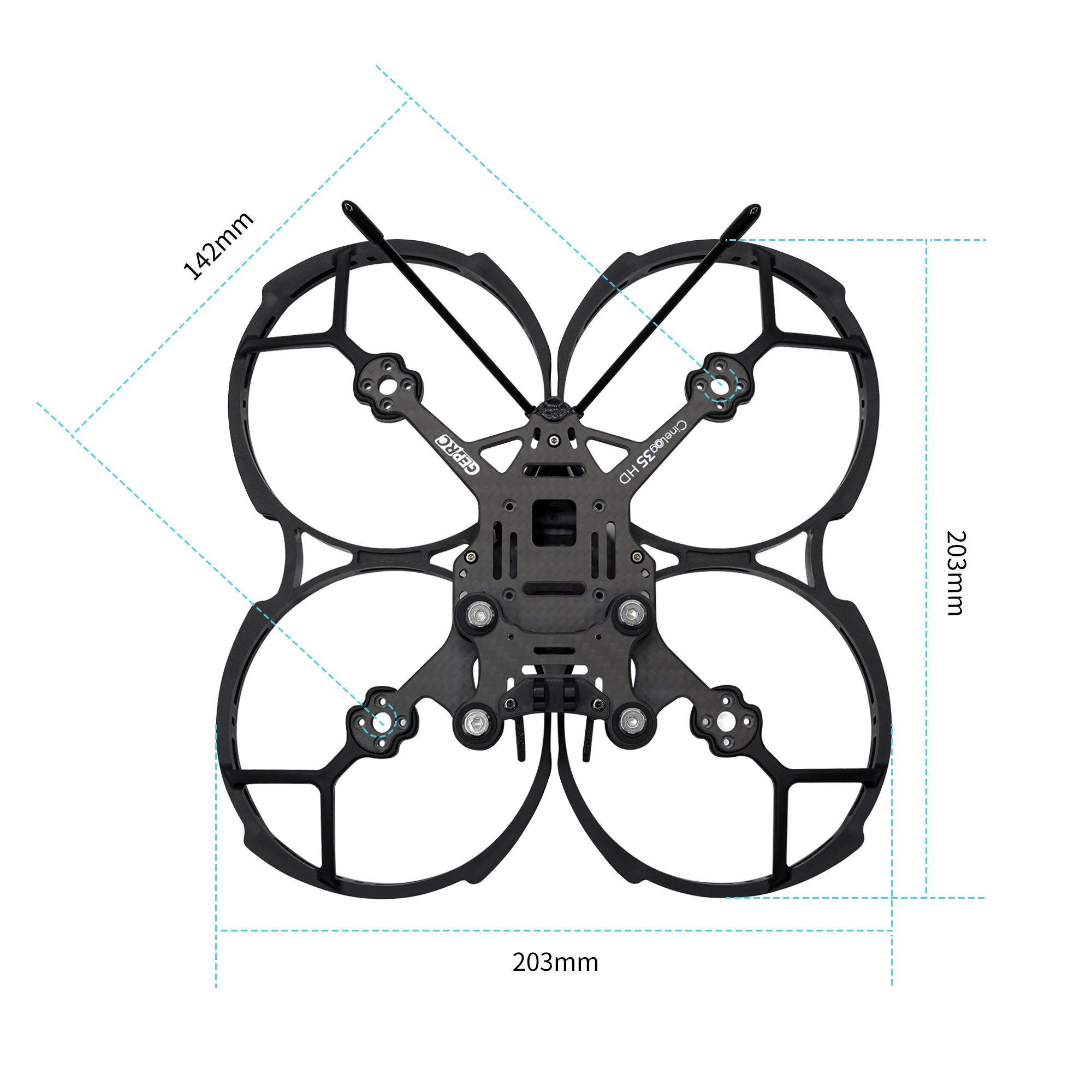

Motor to Motor: 142mm



Top plate: 2.5mm



Bottom plate: 2.0mm



Arm Plate:3.5mm



FC hole position: 26.5mm x 26.5mm



VTX hole position: 20mm x 20mm



Motor hole position: 12mm x 12mm



Camera installation space: 14~19mm



Propeller guard internal diameter: 95mm



Suitable propeller size: 3.5 inch propeller



Dimension: 203mm x 203mm x 42mm(Include propeller guard)



Weight:130.7g(Include propeller guard,GoPro camera mount,3D printings)



Feature:



Integrated protection guard design, the overall structure is firmer and durable.



Improve the damping rings, the shooting effect is more stable and clearer.



CineLog35 has a great mount compatibility, you can install GoPro10, GoPro9, GoPro8, or Naked GoPro 8,Insta 360 GO2 camera and Caddx Peanut camera.



12mm x 12mm motor holes can be installed with 15-18-20 motors, and the power output is strong with 3.5-inch propellers.



The design of open holes on the side of the propeller guard greatly reduces the noise during flight.



Independent receiver cabin,and binding is convenient and fast.



Include:



1 x Top Plate 2.5mm



1 x Arm Plate 3.5mm



1 x Bottom Plate 2.0mm



2 x Propeller guards



1 x Power cable combination



1  x  Screw combination



1  x  Screwdriver combination



1  x  3D Print mountings combination



1 x Other Parts
