GEP-ST16 Frame Kit
¥ 2,450 税込
商品コード：
関連カテゴリ
40mmプロペラを使用した小さくてかわいいドローンフレームキット！
本格的なカーボンフレーム構造！
0802～1102サイズのモーターが使用可能です
アクロフライトへのステップアップに最適です
Specification:
Brand Name: GEPRC
Model: GEP-ST16

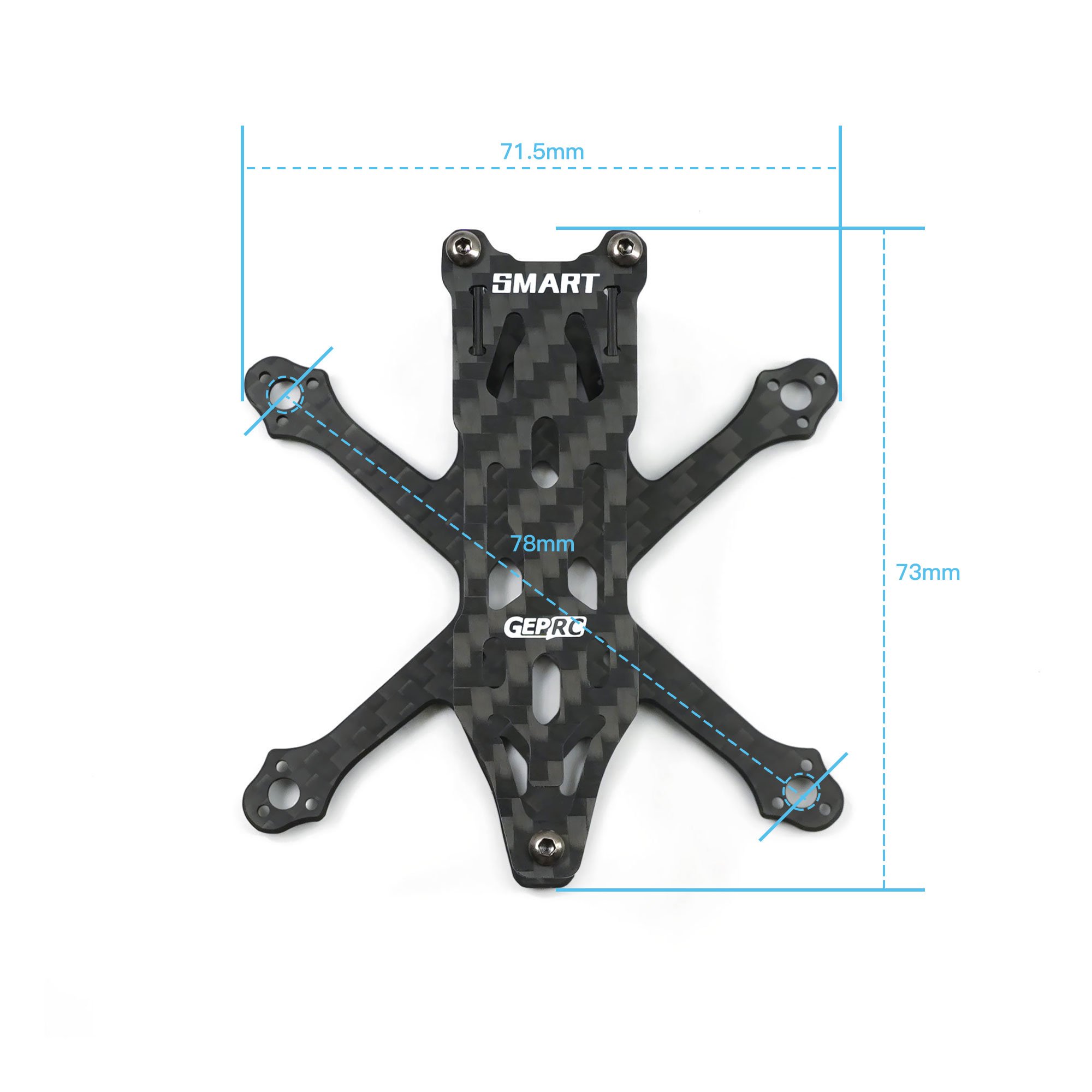

Wheelbase size: 78mm
Top plate thickness: 1.0mm
Bottom plate thickness: 1.5mm
Camera plate thickness: 1.0mm

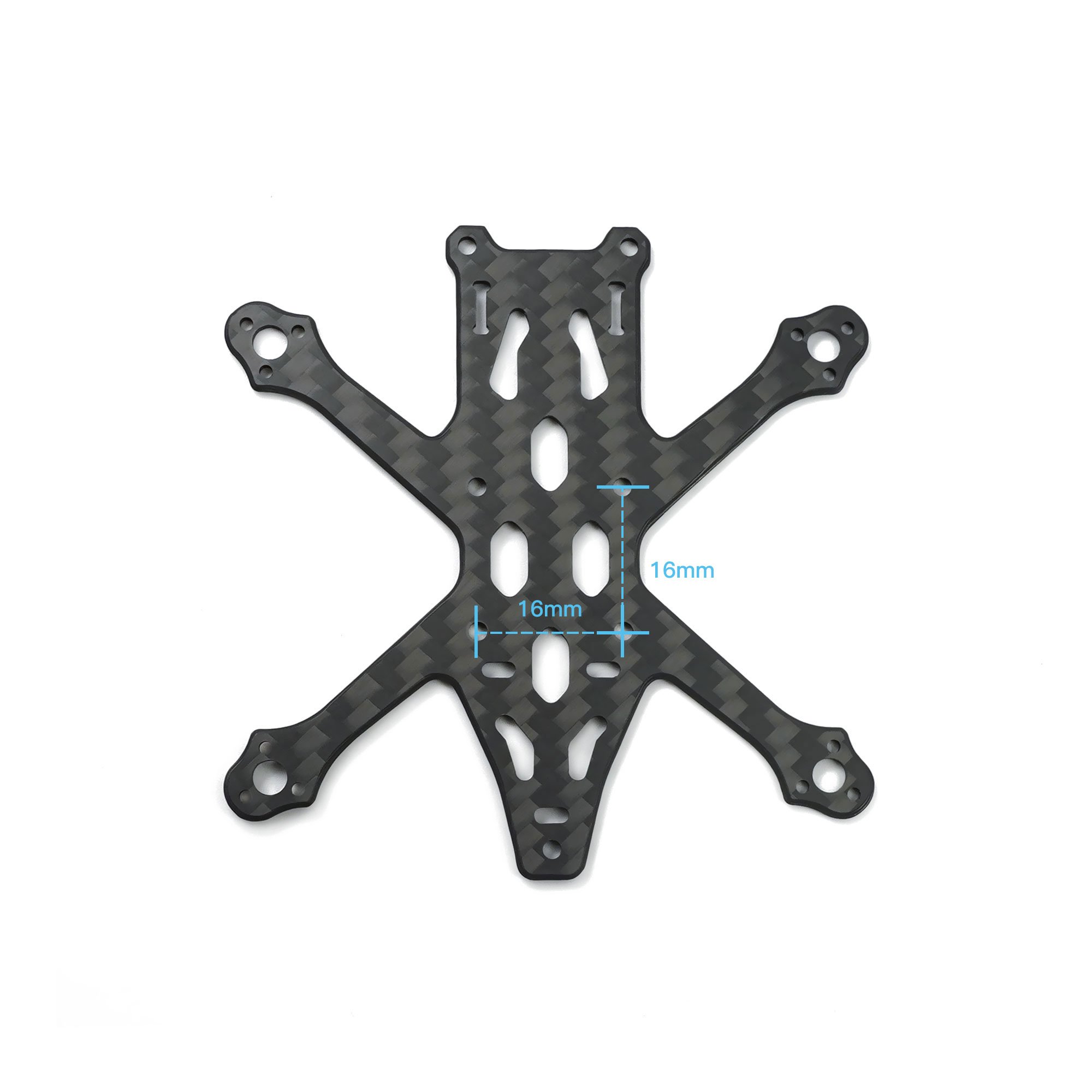

FC mounting holes: 16mm x 16mm
ESC mounting holes: 16mm x 16mm
VTX mounting holes: 16mmX16mm

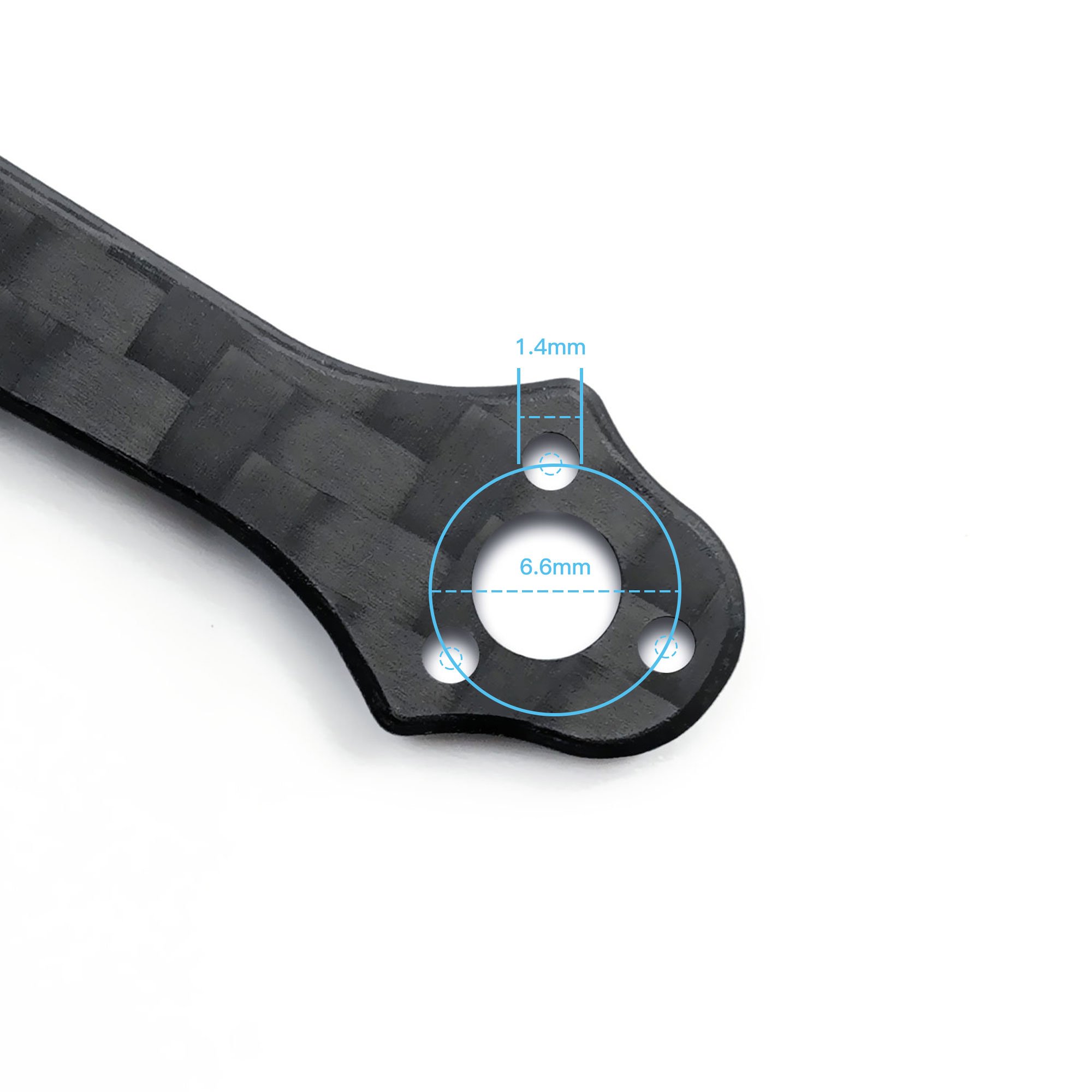

Motor mounting holes: 3-M1.4-EQS-Ø6.6

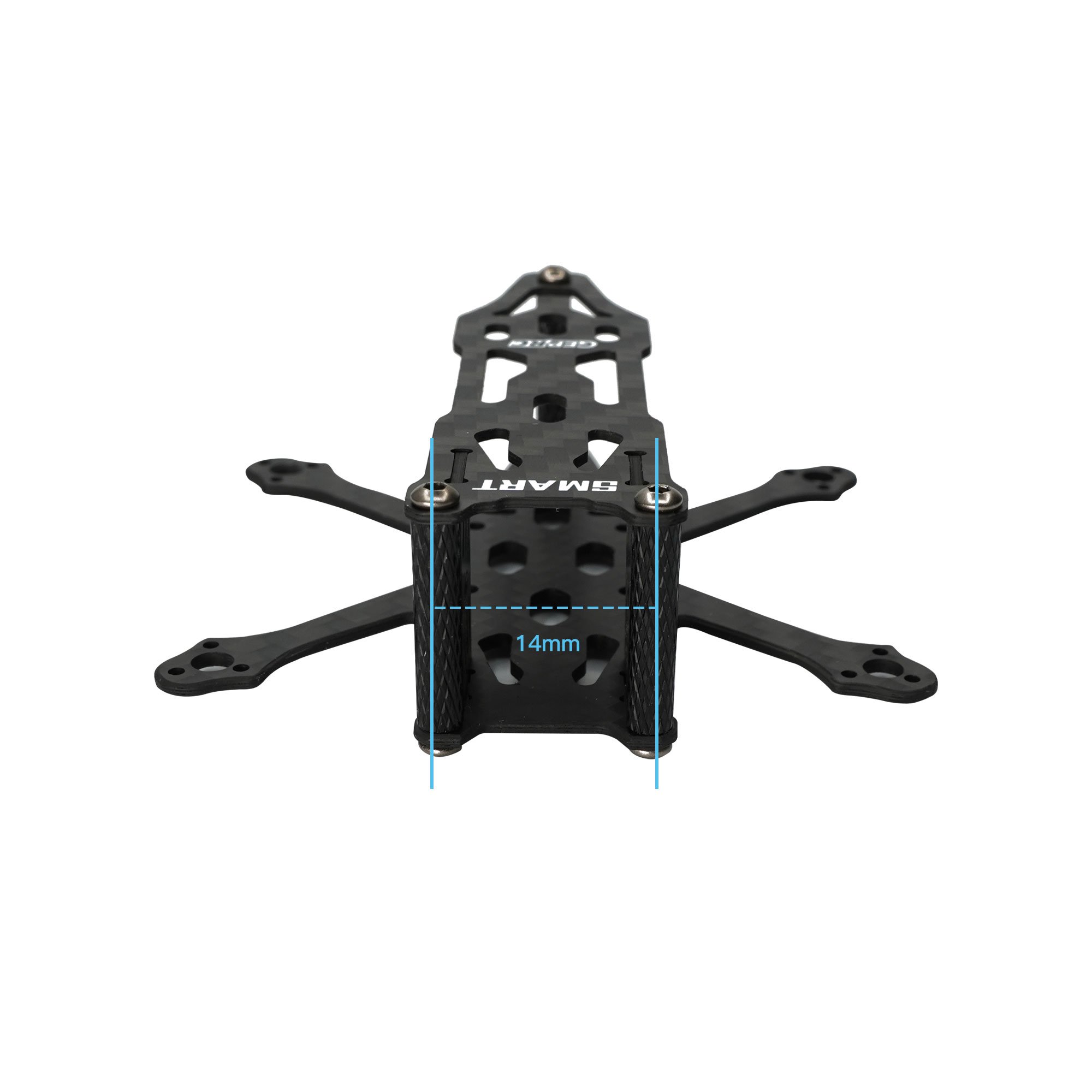

Camera spacing: 14mm
Propeller size: 1.6 inch
Weight: 8.5g (including 3D print)
Features:
1.1.6 inch palm-size
2.Lightweight – 8.5g
3.Motor mounting holes allow installation of 0802 & 0803 motors
4.14x14mm spacing allows installation of any nano camera on the market
5. Independent battery compartment design
6.1.6 inch recommended propeller size maximum efficiency
7.Specifically optimized for both freestyle and racing
8.Includes a full set of high quality 3D printed parts

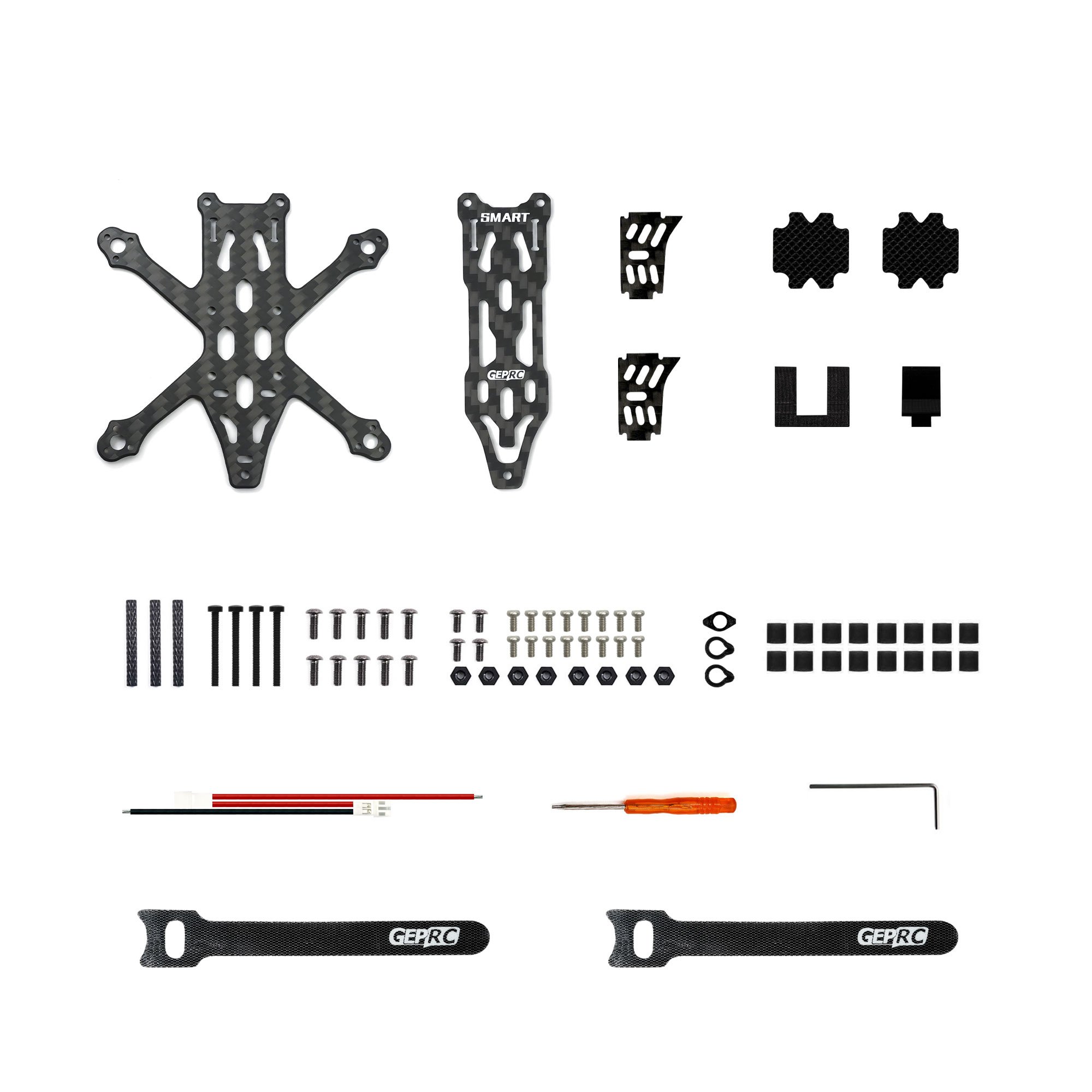

Includes:
1 x 1.0mm top plate
1 x 1.5mm bottom plate
1 x 1.0mm camera plate
1 x Screw set
1 x Printed set
1 x Spare screwdriver set
2 x Battery tie M12x120mm
2 x Battery non-slip mat
