TBS Crossfire SIXTY9

¥ 6,180 税込

商品コード:

数量

クロスファイア受信機とUnify Pro32ビデオトランスミッターが一体となったコンパクトなRX+TXです!

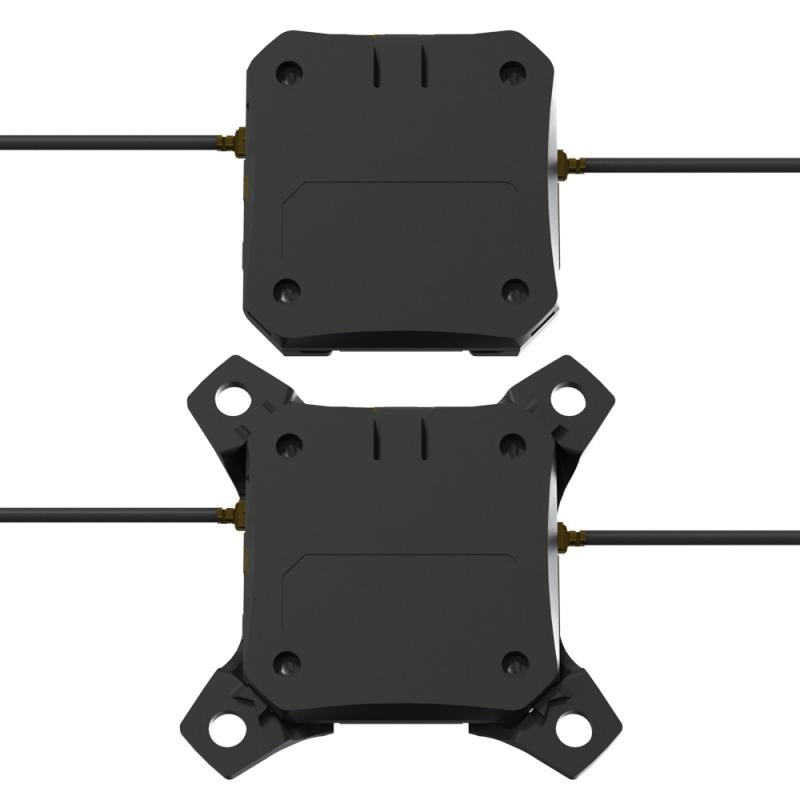

20mmx20mmと30mmx30mmのマウントに対応します

VTXは最高出力が1000mWを確保!

TBS Crossfireに対応します





FEATURES:



Integrated video transmitter control with long range and (team-)race functions



Dedicated low-noise power supply for receiver and video transmitter



Sleek 20x20 mounting form factor



Plug&play connection and solder pads connectivity

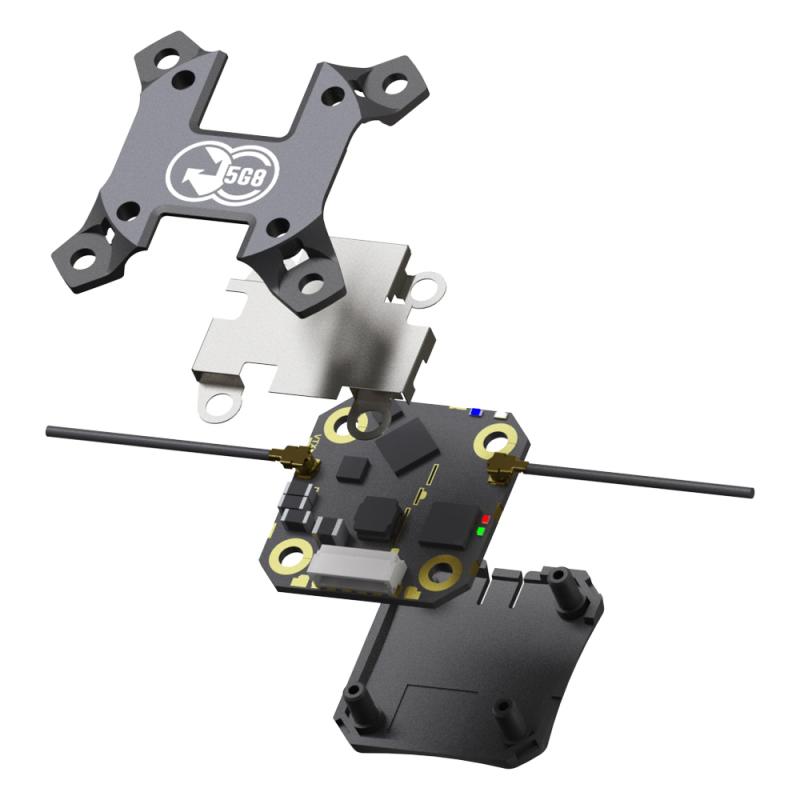

3 different mounting flavors, RF tin shields, and other accessories included



High power analog adjustable video transmitter (up to 1W with perfect cooling)



5V regulator bulti-in, takes up to 6S





SPECIFICATIONS



Weight: 4.1g (board only)



Antenna ports: 1x video transmitter, 1x R/C receiver



Size: 24mm x 24mm



Requires: Firmware V4.62 and above



CRSF V3 ready



Input voltage: 8-25V (2-6S)

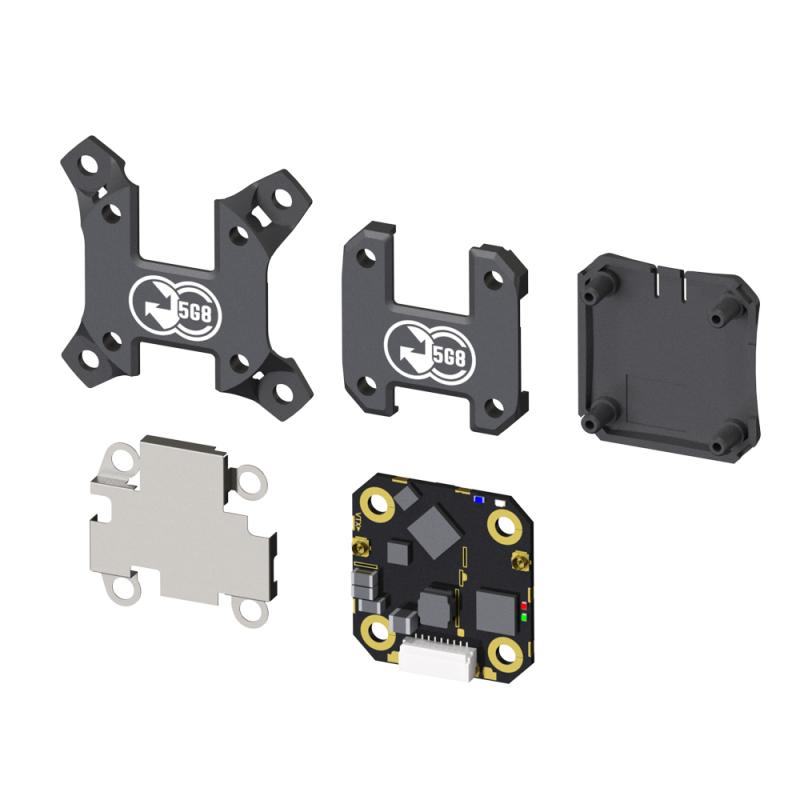

INCLUDES



1x TBS Crossfire Sixty9



1x TBS Crossfire Immortal-T antenna



1x u.FL to SMA mount (for VTx)



1x 30x30 heatsink / case



1x 20x20 heatsink / case



1x optional tin-shield (for added low-noise tolerance)



1x JST-SH x 9 connector





DOWNLOADS



TBS Crossfire - RED Declaration of Conformity



TBS Crossfire Manual
