HGLRC FD F722 Gyro 60A 3-6S BL32 4in1
¥ 10,500 税込
商品コード：
関連カテゴリ
最新のF7チップSTM32F722搭載の超ハイパフォーマンスF7フライトコントローラー+60A BL32 ESC！
今までにないレスポンスと制御の安定性を体感できます！
3セルから6セル入力に対応

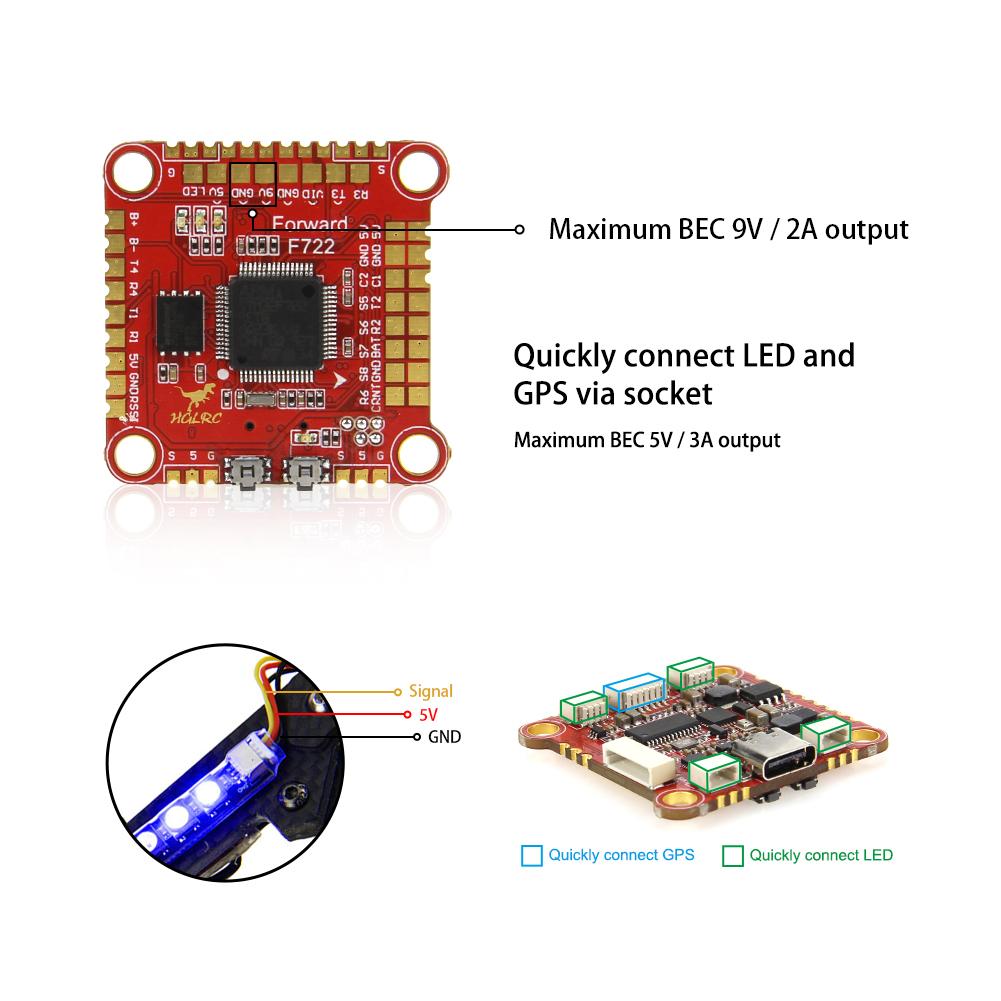

フローティングダンパー付きで振動の対策もOK

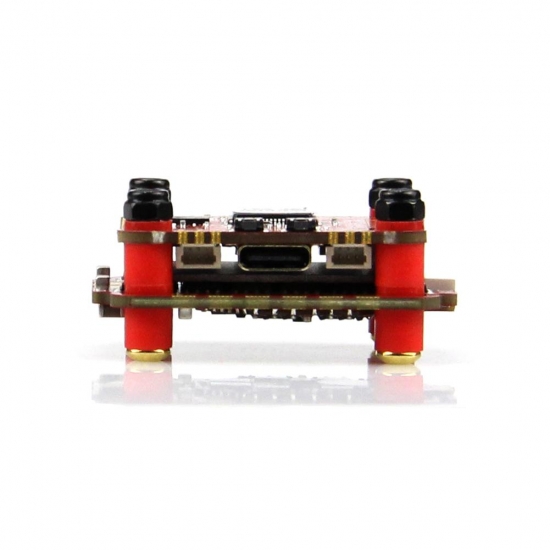

USB-C仕様
※LED4個付属

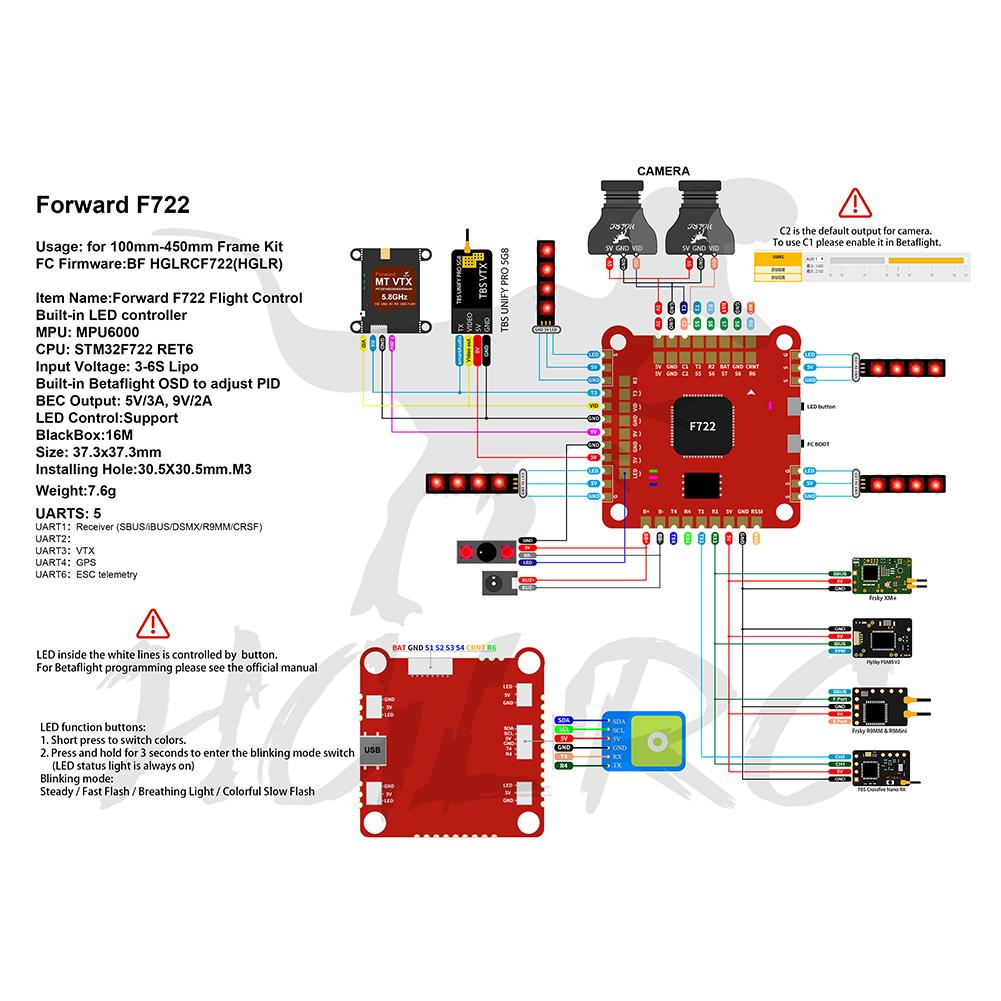

Specification: (User Manual)
Usage:for 100mm-450mm Frame Kit
FC Firmware:BF HGLRCF722(HGLR)
Item Name:Forward F722 Flight Controller

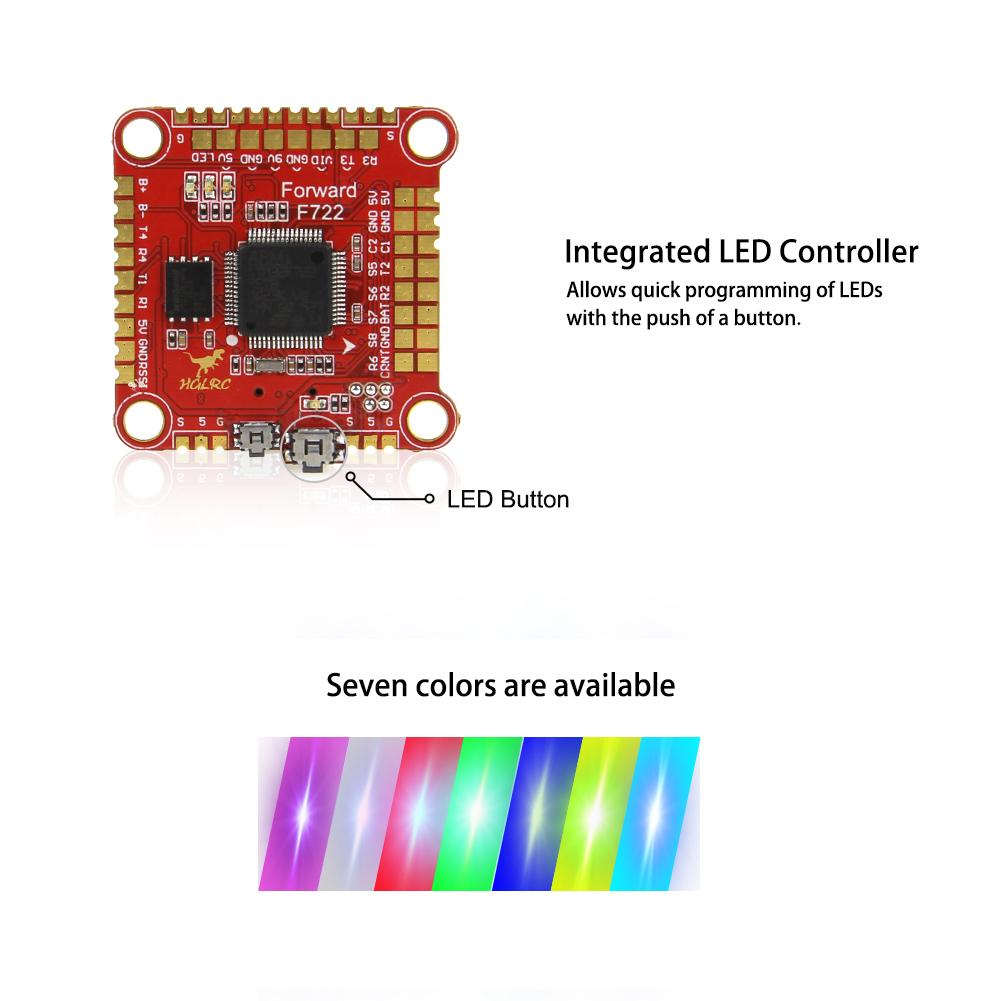

Built-in LED controller
MPU: MPU6000
UARTS:5
CPU:STM32F722 RET6
Input Voltage:3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output:5V/3A, 9V/2A
LED Control:BF/Button
BlackBox:16M

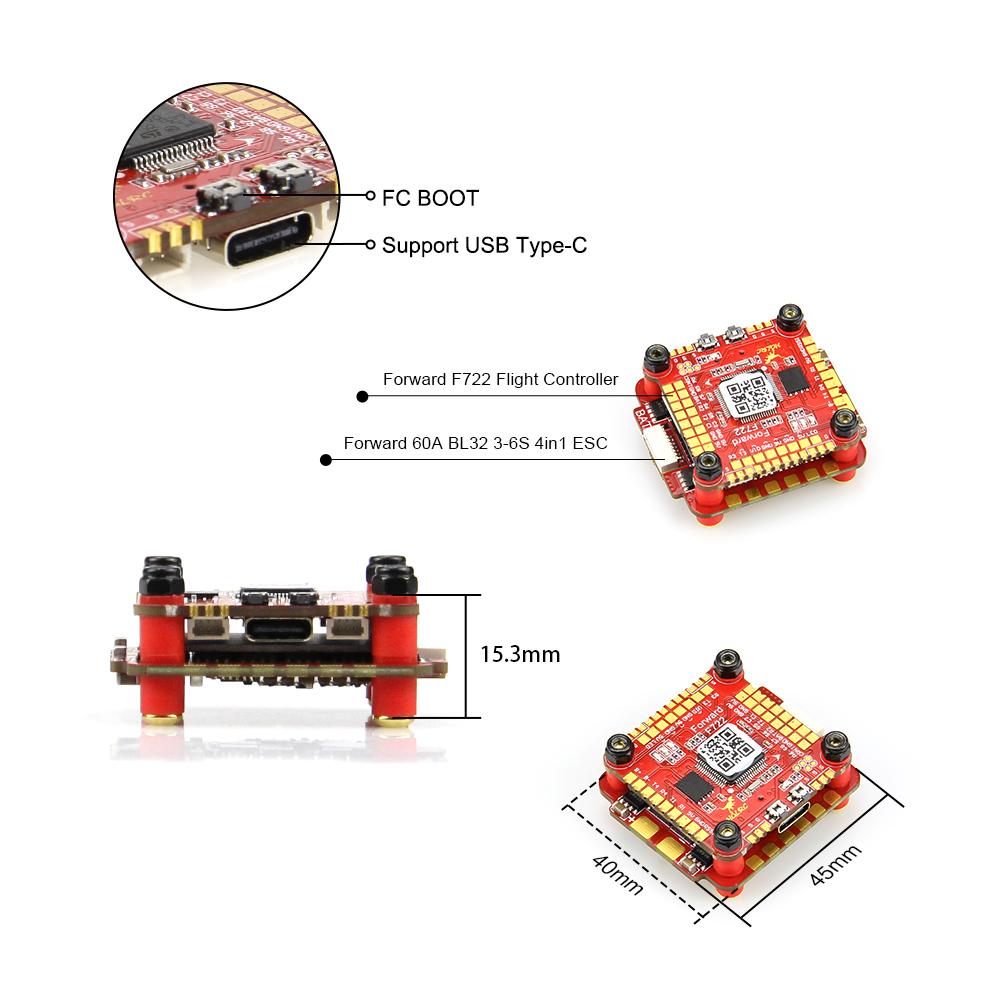

Size:37.3x37.3mm
Installing Hole:30.5X30.5mm
Weight:7.6g

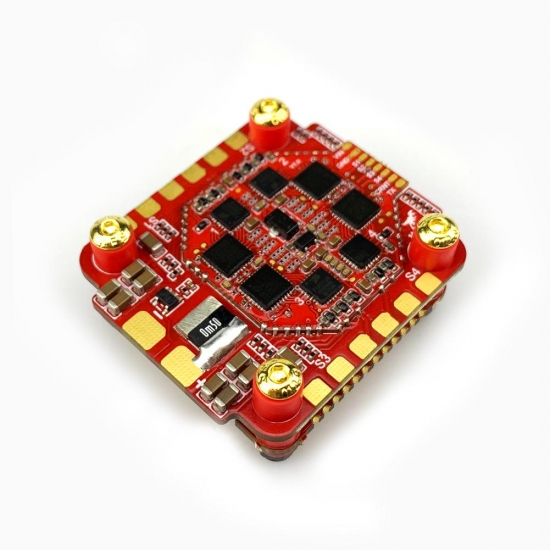

DinoShot 60A Blheli_32 3-6S 4IN1 ESC
CPU: STM32F051
MOS Tube: TOP QUALITY MOSFET
Input voltage: 3-6S lipo battery
Constant current: 60A-4S/50A-5S/40A-6S
Peak current: 70A
BEC ouput: NO
Protocol: DSHOT1200/600/300/150/Oneshot125/42, MultiShot Damped mode
Size: 36x36mm (main board)
40x48mm (including pad)
Installing hole: 30.5x30.5mm, M3
Weight: 12.9g
Package Included:
1x F722 Flight Controller
1x 60A BL32 3-6S 4in1 ESC
