WALKSNAIL AVATAR HD NANO KIT
¥ 19,800 税込
商品コード：
関連カテゴリ
国内技適取得（室内専用）のWalksnailデジタルカメラユニット！
室内での使用に関しては、無線免許や許可の要らないユニットとの使用で誰でもFPVが体験できます！
※WALKSNAIL AVATAR ゴーグルに対応します
アナログとは比べ物にならないほどの鮮明さと録画映像が楽しめます
※カメラユニット19.5g
FEATURES
Lower latency than the competitor at an average of 22ms
Built-in 8Gb Internal Storage
1080p Screen Resolution
Switchable Aspect Ratio
Dual Antenna Design
5.8GHz Frequency
Onboard DVR
Canvas Mode
4km Range
170° FOV
6V-25.2V
SPECIFICATIONS

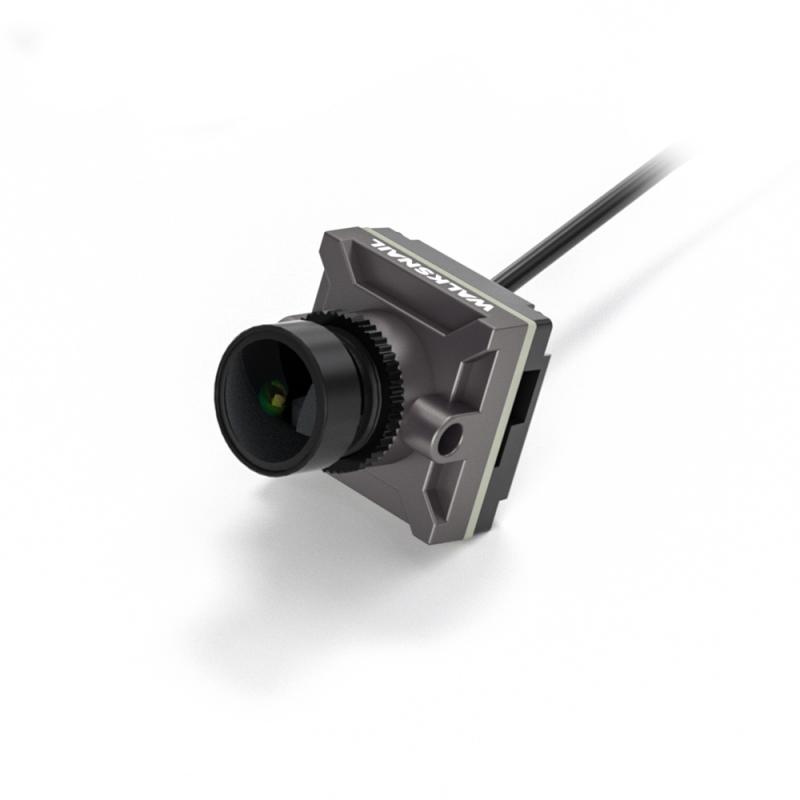

AVATAR HD CAMERA
Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
Aspect Ration: 16/9 and 4/3 Switchable
Minimum Illumination: 0.001Lux
Shutter Style: Rolling Shutter
Dimensions: 14x14x17mm
Cable Length: 90mm
Image Sensor: 1/27"
Field Of View: 170°
Aperture: F 2.0
Lens: 2.1mm
Weight: 3.5g
AVATAR VTX
Transition Power: FCC<30dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
Operational Frequency: 5.725-5.850GHz
Operating Temperature: -20° to 40°
Supported FC Firmware: Betaflight
USB Connection: JST x 4 to USB-A
Video Resolution: 1080p / 720p
FC Connection Port: JST1.0 x 6
Dimensions: 33x33x9.5mm
Antenna Connector: U.fl
Latency: 22ms Average
Input Voltage: 6-25.2V
Internal Storage: 8GB
Mounting: 25x25mm
Weight: 16g
Channels: 8
AVATAR ANTENNAS
Radiation Efficiency: >= 98%
Bandwidth: 5.6-5.9GHz
Gain: 2dBi Average
Polarization: LHCP
Connector: U.fl
Length: 90mm
VSWR: <=1.4
Weight: 1.5g
INCLUDES

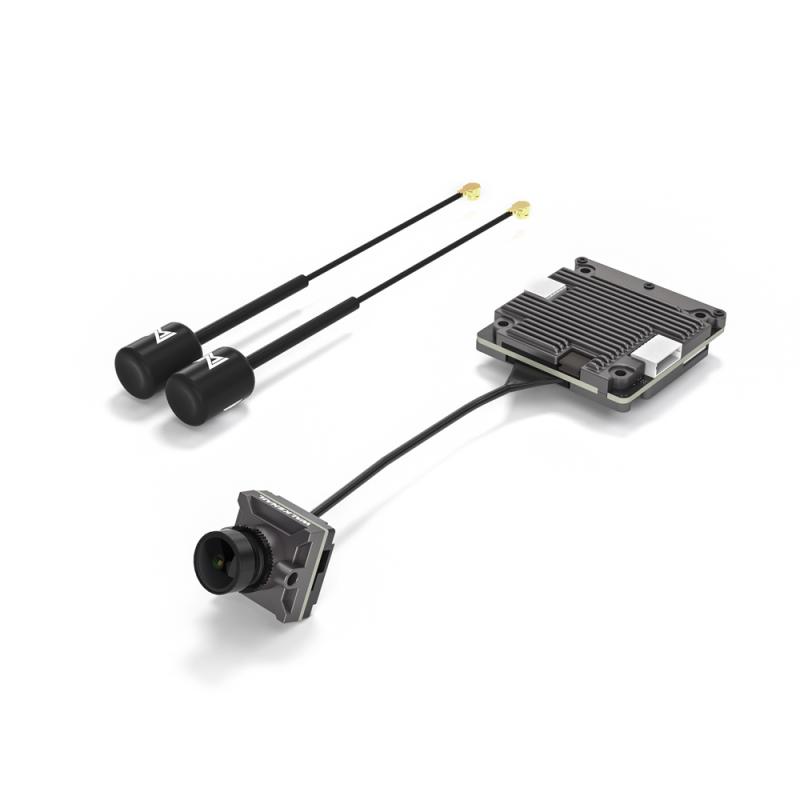

1x Walksnail Avatar Nano HD Camera w/ Avatar VTX
2x LHCP 5.8GHz Antennas
2x M1.2 1.5mm Screws
1x 6-Pin Silicone Cable
4x M2 3mm Screws
4x M2 4mm Screws
4x M2 5mm Screws
1x USB Data Cable
